Description

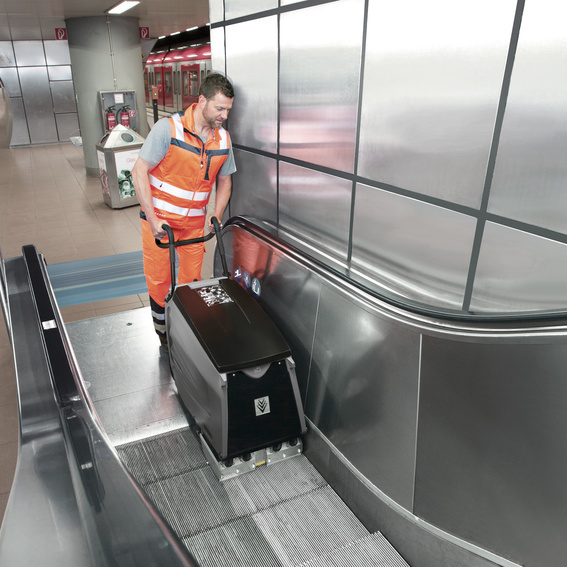

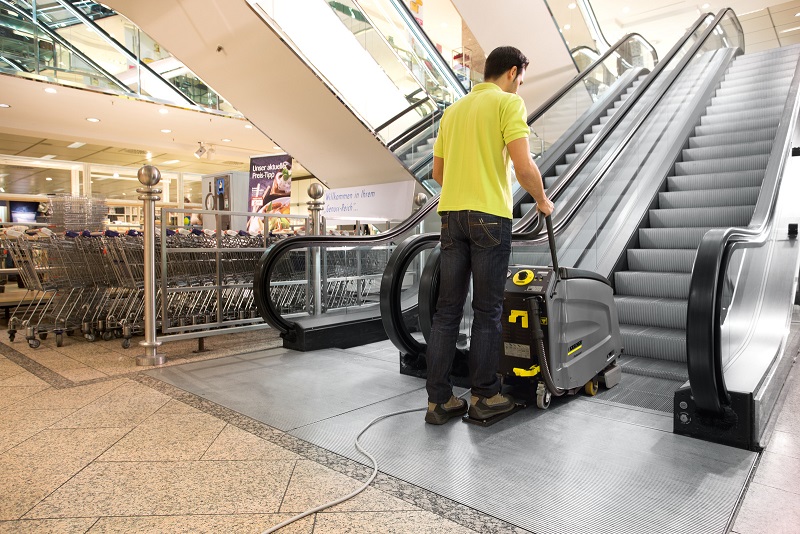

Cleaning with the Karcher BR 47/35 Esc Escalator Cleaner is performed with the escalator or travelator running. The machine is positioned at the bottom of the escalator. Special nozzles spray the cleaning solution onto the scrubbing brushes, which then apply it to the treads. (Treads must move away from the machine.) Dirty cleaning solution is vacuumed away gain in the same operation. This is assisted by pick-up brushes which convey the solution to the suction nozzles. The shape of the brush head and the central brush motor allow the brushes to reach and clean the outermost grooves in the tread. A centring skid in the middle of the brush head keeps the machine in alignment during the cleaning process. The BR 47 35 esc is suitable for many different makes of escalators and travelators. Four different sets of combs are available to suit most makes. They engage in the tread grooves to provide a seal between the machine and the treads for efficient pickup.
Excellent suction power
The applied water is reliably sucked back into the machine by the two powerful suction turbines together with four straight suction hoses and matching combs. Prevents water from dripping into the escalator shaft.
Suitable for escalators
Combs which enter the grooves in the escalator provide the necessary vacuum. Different combs are available to suit different types of escalators. This ensures that the moisture is effectively vacuumed from the escalator.
Excellent suction power
Prevents water from dripping into the escalator shaft.
Easy to stand up at the rear of the machine during operation
For simple operation.
Brush and comb replacement without tools
When the tanks are empty, the brushes and combs can be changed without additional tools.
Brush head is lowered on escalators
Safe handling
High quality
High-quality components reduce maintenance effort to a minimum
No vibrations
More comfort
Powerful suction turbine
For extremely high suction power. The applied water is reliably sucked back into the machine together with four straight suction hoses and matching combs.
Short brush head
For universal use. Also suitable for cleaning escalators that ascend after 1½ steps.
Technical data
| Drive type | Mains operation |
| Working width of brushes (mm) | 470 |
| Tank of fresh/dirty water (l) | 35 / 35 |
| Brush rotational speed (rpm) | 870 – 1090 |
| Water consumption (l/min) | max. 1 |
| Sound pressure level (dB(A)) | 75 |
| Supply voltage (V/Hz) | 220 – 240 / 50 – 60 |
| Dimensions (L x W x H) (mm) | 1129 x 480 x 1031 |
Scope of supply
- Cleaning brushes
- Pick-up brushes
- Mains operation
Equipment on the Karcher BR 47/35 Esc Escalator Cleaner
- Suction motor: 800 W
