Description

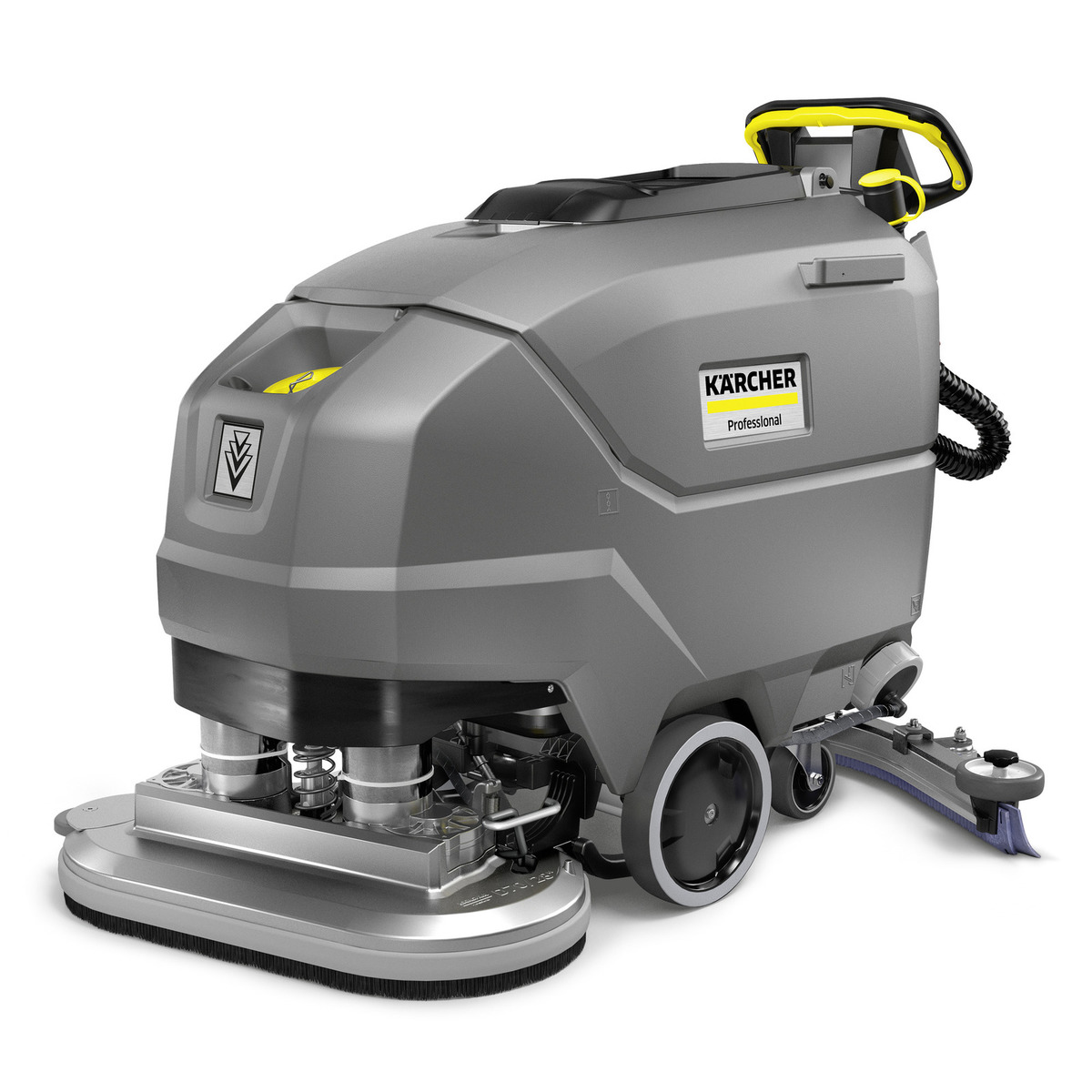

Simple concept, easy to use, easy maintenance: The battery powered Kärcher BD 70/75 W Bp Walk-Behind Floor Scrubber is extremely user friendly and delivers great cleaning performance thanks to its dual-disk brush head with adjustable brush contact pressure and aluminium squeegee. The robust, extremely compact machine is also highly manoeuvrable and versatile. Its 75 litres of tank volume also effortlessly ensure long runtimes.
The brush head and squeegee are made from long-lasting aluminium
Robust machine concept for tough working conditions with low failure rates. Also developed for applications in harsh conditions.
Extremely simple operating concept
All machine functions can be operated using switches, buttons and knobs. Colour-coded controls for easy operation and short teach-in times.
Compact and robust design
Highly versatile, easy to manoeuvre machine that provides a good overview. Reduces the risk of damaging the machine or equipment.
Brush contact pressure can be adjusted as needed
Contact pressure can be increased from 30 to 50 kilograms as needed.
Lower contact pressure when there is only a little dirt or if the floor is delicate.
High contact pressure for stubborn dirt or coating removal.
Technical data
| Drive type | Battery |
| Traction drive | Traction motor |
| Working width of brushes (mm) | 705 |
| Working width, vacuuming (mm) | 1030 |
| Tank of fresh/dirty water (l) | 75 / 75 |
| Theoretical area performance (m²/h) | max. 3525 |
| Practical area performance (m²/h) | 2115 |
| Battery (V) | 24 |
| Driving speed (km/h) | max. 5 |
| Brush rotational speed (rpm) | 180 – 180 |
| Brush contact pressure (g/cm²/kg) | 20.4 – 34 / 30 – 50 |
| Water consumption (l/min) | max. 2.75 |
| Sound pressure level (dB(A)) | 63 – 65 |
| Total permissible weight (kg) | 325 |
| Weight without accessories (kg) | 100 |
| Dimensions (L x W x H) (mm) | 1445 x 750 x 1065 |
Scope of supply
- Disc brush
- squeegee, angled
Equipment on the Kärcher BD 70/75 W Bp Walk-Behind Floor Scrubber
- Powerful traction drive
- 2-tank system
- Motor: Battery
