Description
Car Wash Equipment – Option 5 – High quality, durable, rugged, and reliable Kärcher car wash equipment, which offers exceptional but gentle cleaning performance, are light on resources and consumables, and come in a variety of packages to suit your vehicle cleaning needs.
The Kärcher car wash equipment provides businesses with an industrial vehicle cleaning solution that is perfect for new and existing car wash businesses.
Car Wash Equipment – Option 5 – Equipment

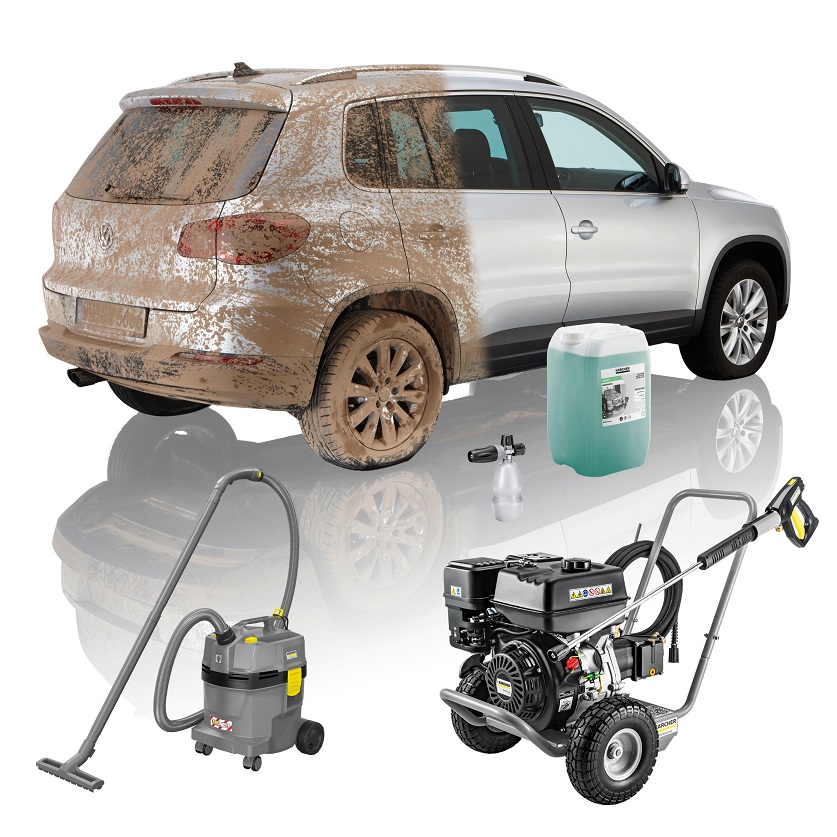

This package includes the following:
• 1 x HD 6/15 G Classic petrol powered pressure washer
• 1 x NT 22/1 Ap wet & dry vacuum cleaner
• 1 x Foam Nozzle
• 1 x Quick Fitting Coupler
• 2 x Male Coupling
• 1 x RM 812 foaming chemical, 20 litre
Car Wash Equipment – Option 5 – Pressure washer
The Karcher HD 6/15 G Classic Petrol Pressure Washer is the ideal entry-level machine for starting out in the world of petrol-powered, mobile cold water high-pressure cleaners from Kärcher. Extremely easily transportable in a car, it can complete even more demanding cleaning tasks, for example on construction sites or in municipalities, with a working pressure of up to 150 bar, a robust crankshaft pump and a water volume of up to 600 litres per hour.
The integrated petrol engine (EU STAGE V) allows autonomy from external power sources, air-filled wheels guarantee the required mobility in its place of use, and the ergonomic push handle and the practical accessory storage ensures user-friendly handling. The components, protected through thermo and safety valves, are easily accessible. The stable tubular steel frame of the Karcher HD 6/15 G Classic Petrol Pressure Washer also reliably prevents damage resulting from external mechanical effects.
Independence
Allows independence of external power sources. Complies with the requirements of exhaust emissions standard EU STAGE V. Convenient manual pull start.
Outstanding mobility
Large wheels with pneumatic tyres for uneven surfaces. The compact and slim machine is also very easy to manoeuvre in confined areas. For excellent mobility, comfortable transport and space-saving storage – fits perfectly in a standard car.
Durable and robust
A robust tubular steel frame reliably protects the machine against damage. Thermostat valve to protect the pump from overheating in recirculation mode. Crankshaft pump with ceramic pistons.
Storage possibility for accessories
– Hose hook and accessory storage for simple storage and carrying.
– Ergonomic handle and hose storage.
Technical data
| Flow rate (l/h) | 600 |
| Working pressure (bar/MPa) | 150 / 15 |
| Max. pressure (bar/MPa) | 200 / 20 |
| Drive type | Petrol |
| Motor type | G200FA |
| Number of simultaneous users | 1 |
| Portability | High |
| Weight (with accessories) (kg) | 42.5 |
| Weight incl. packaging (kg) | 43.6 |
| Dimensions (L x W x H) (mm) | 878 x 538 x 702 |
Equipment
- Spray gun, Standard
- High-pressure hose, 10 m
- Power nozzle
- Cage protective frame
- Crankshaft pump with ceramic pistons
Car Wash Equipment – Option 5 – Vacuum Cleaner
Small, powerful, reliable, extremely versatile and light as a feather, the NT 22/1 Ap wet and dry vacuum cleaner delivers impressive results during light and moderate cleaning work in a number of commercial applications. Thanks to the semi-automatic filter cleaning system and moisture-resistant PES cartridge filter, it can deal with dust, coarse dirt and liquids effortlessly. The suction hose connection attached directly on the device head enables maximum utilisation of the container capacity. Its very compact dimensions and low weight enable the device, which is also easy to operate, to be transported conveniently and easily.
Low weight and compact dimensions
The machine can be easily and conveniently transported and stored.
Semi-automatic filter cleaning
Semi-automatic filter cleaning effectively ensures constant high suction power.
Moisture-resistant PES cartridge filter
It is possible to change from wet to dry vacuum cleaning easily without having to dry the PES cartridge filter first. Washable PES filter.
Suction hose connection in the machine head
Enables the entire container volume to be utilised.
Save time by not having to empty the container as often.
Technical data
| Supply voltage (Ph/V/Hz) | 1 / 220 – 240 / 50 – 60 |
| Air flow (l/s) | 72 |
| Vacuum (mbar/kPa) | 249 / 24,9 |
| Container content (l) | 22 |
| Container material | Plastic |
| Rated input power (W) | max. 1300 |
| Standard nominal width | ID 35 |
| Cable length (m) | 6 |
| Sound pressure level (dB(A)) | 71 |
| Weight without accessories (kg) | 5,7 |
| Weight incl. packaging (kg) | 8,2 |
| Dimensions (L x W x H) (mm) | 380 x 370 x 480 |
Equipment
- Suction hose: 1.9 metre, with bend
- Suction tube: 2 piece(s), 0.5 metre, Plastic
- Filter bag: 1 piece(s), Fleece
- Wet/dry floor nozzle: 300 mm
- Crevice nozzle
- Cartridge filter: PES
- Filter cleaning: Semi-automatic filter cleaning Ap
- Protection class: II
- Stop swivel castor
Car Wash Equipment – Option 5 – Accessories & Chemicals
Foam lance – Short, handy foam lance with adjustable spray angle with 1 litre detergent tank. Kärcher foam lance is ideal for cleaning cars due to its compact design. Further features: Rotating connector (M 22 x 1.5) and variable detergent dosage via control on lance.
RM 812 – selected ingredients and a special formulation for gentle and intensive cleaning of cars and commercial vehicles at the same time: VehiclePro Active Foam RM 812 Classic from Kärcher. Suitable for use at self-service washing stations and in vehicle wash systems, the particularly foam-intensive active foam reliably and effectively removes grease, oil and mineral contamination from vehicle surfaces. RM 812 Classic can also be used as a brush shampoo. The voluminous, light-coloured foam supports the gliding properties of the brushes and thus protects the paintwork, while at the same time significantly reducing the resoiling of the brushes. In addition, the high-yield active foam is matched to subsequent wax products and thus prevents streaking, quickly separates oil/water in the oil separator and is VDA-compliant.
